Mitsubishi Multi-Zone Mini-Split Systems in Pasadena
The short answer: Pasadena Mitsubishi HVAC installs and services Mitsubishi MXZ and MXZ-SM multi-zone systems across Pasadena (91101 to 91107), ideal for whole-home comfort in duct-free Madison Heights and Bungalow Heaven homes, where one outdoor unit drives two to eight indoor heads - call (213) 444-4051 or book online for a Manual J quote.
Fast facts
- Outdoor units: MXZ-2C/3C/4C and the current MXZ-SM SMART MULTI (36/42/48 NAMHZ Hyper-Heat).
- One condenser drives 2-8 indoor heads: MSZ wall heads, MFZ floor consoles, MLZ cassettes, ducted air handlers.
- Service area: Pasadena 91101, 91103, 91104, 91105, 91106, 91107.
- Install lane (3-4 zones): $9,000 - $20,000 at the SoCal high end.
- Whole-home comfort with one tidy outdoor unit.
When does a Pasadena home need multi-zone?
Single heads are great for a room or two, but when you want to condition a whole Craftsman or Spanish-revival home that has no ducts, running three or four separate outdoor units gets ugly fast - multiple wall penetrations, multiple condensers cluttering the side yard, multiple things to service. A multi-zone MXZ or MXZ-SM SMART MULTI system puts one quiet outdoor unit on the job and runs slim line sets to each room's indoor head. For Madison Heights estates and larger San Rafael homes, that single-condenser approach also keeps the historic exterior cleaner.
The SMART MULTI advantage
The MXZ-SM platform is Mitsubishi's current multi-zone standard. One outdoor unit will carry M-Series, P-Series, and CITY MULTI heads together, which is what lets a single Pasadena system run an MSZ wall head in the living room, an MFZ floor console in a back bedroom, and a hidden ducted air handler upstairs - every one of them fed by the same MXZ-SM. The NAMHZ versions add Hyper-Heat for all-electric homes.
The outdoor units, model by model
- MXZ-2C20NAHZ - a compact two-zone Hyper-Heat condenser, about 20,000 BTU/h. Best for a small bungalow where you only need two heads.
- MXZ-3C30NAHZ - the legacy three-zone unit, around 30,000 BTU/h, that covers a typical 1,400 sq ft Craftsman.
- MXZ-4C36NA - a four-zone unit at roughly 36,000 BTU/h for a larger Madison Heights or Historic Highlands home.
- MXZ-SM36 / SM42 / SM48 NAMHZ - the current SMART MULTI platform, 36k to 48k BTU/h, driving up to eight heads with mix-and-match indoor units and Hyper-Heat. Best for a San Rafael estate or a whole-home all-electric conversion.
Sizing is not just adding up the heads. Mitsubishi multi-zone condensers have a connectable-capacity range, and over-heading a small condenser starves zones while under-heading wastes the unit. We pick the smallest MXZ-SM that covers the combined Manual J load with sensible diversity.
What goes wrong on a multi-zone system?
Multi-zone faults usually live in a single branch or the shared outdoor unit. Dated typical 2026 SoCal lanes:
| Symptom | Likely cause / first check | Typical lane |
|---|---|---|
| One zone weak, rest fine | Branch LEV, line-set leak, or that head's thermistor | $200 - $1,500 |
| All zones down, U6 | Outdoor inverter PCB or compressor | $400 - $2,000+ |
| Comm errors, EA/EB | Inter-unit S1/S2/S3 wiring to a branch | $150 - $600 |
| Outdoor unit trips, U9 | Supply voltage or inverter board | $89 - $2,000 |
| One head leaks water, P4/P5 | That zone's drain pump or float; clear and test | $150 - $450 |
| Weak heat across zones, U7 | Low charge in the shared circuit; pressure test | $225 - $1,500 |
The diagnostic rule on multi-zone is simple: if one room misbehaves, suspect that branch; if every room fails together, suspect the shared outdoor unit or the main charge. That keeps most repairs to a single branch rather than a full-system job.
What does a multi-zone retrofit involve on a historic home?

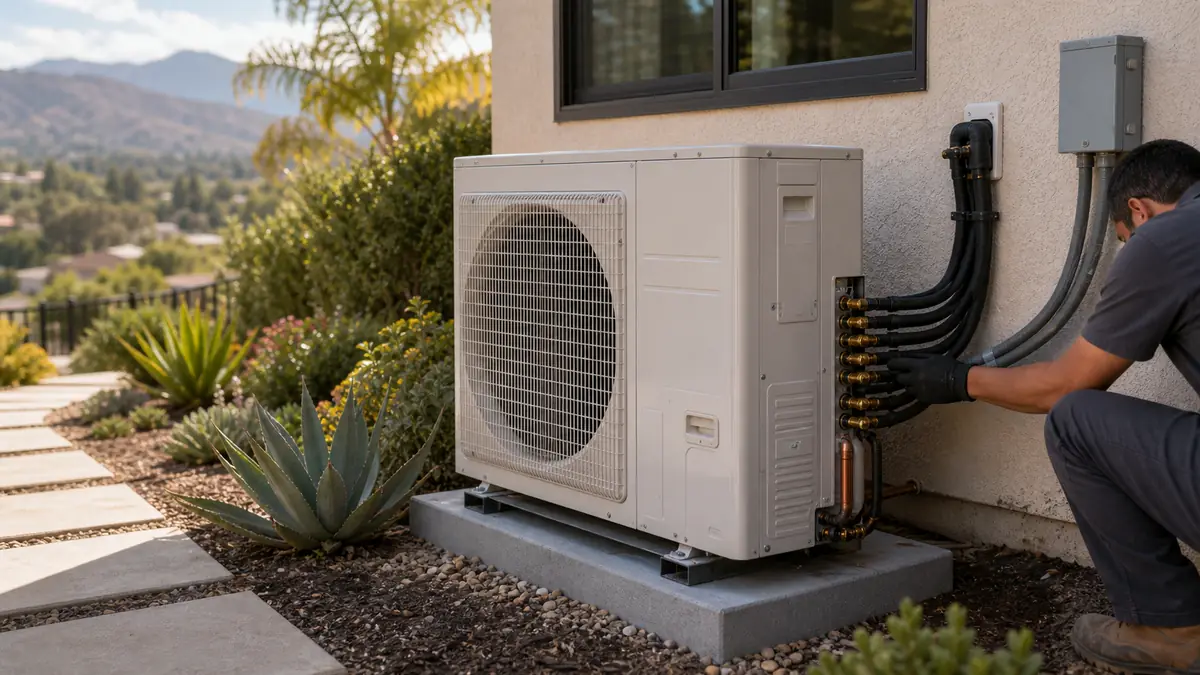

The appeal of multi-zone in Pasadena is one tidy outdoor unit instead of three or four condensers cluttering the side yard - which matters when the side yard is narrow and the street facade is protected. From that single MXZ-SM, a separate slim line set runs to each indoor head, so a four-zone job means four line-set routes, each kept off the primary elevation and tucked into color-matched covers. We plan those routes through closets, soffits, and exterior walls to minimize wall penetrations and keep the historic exterior clean. The condenser still needs clear airflow on all sides and a level pad, and an all-electric NAMHZ Hyper-Heat conversion adds a panel-capacity check, since many 1920s homes run service too small for the new circuit without a subpanel. Title-24 charge and airflow verification applies on the new system.
Multi-zone versus several single-zone units
Honest tradeoff: a multi-zone MXZ wins on most three-plus-room jobs because it uses one outdoor unit, fewer wall penetrations, and one tidy side-yard footprint, and it usually costs less than three or four separate systems. The catch is shared fate - if the outdoor compressor or the main charge fails, every zone goes down at once, where separate single-zone units would only lose one room. Single-zone units also let each room run fully independently and can edge out multi-zone on efficiency in the smallest sizes. For one or two rooms, separate single-zone heads are often cheaper and more resilient; for a whole Craftsman or Spanish-revival home, multi-zone is the cleaner answer. We price both so the choice is yours.
Planning a multi-zone install
We size each zone with a Manual J load so no single room is over- or under-served, then choose the smallest MXZ-SM that covers the combined demand. Read the sizing guide for why that matters, see ductless installation for the full process, and compare single-zone wall heads if you only need a room or two. For all-electric homes, pair with Hyper-Heat.
Common questions
How many rooms can one Mitsubishi outdoor unit handle?
An MXZ or MXZ-SM SMART MULTI outdoor unit can drive two to eight indoor heads off a single condenser. For a typical Pasadena bungalow we land on three to four zones; larger Madison Heights and San Rafael estates may run five to eight. The right number comes from a Manual J load per room, not a guess.
What is the MXZ-SM SMART MULTI platform?
MXZ-SM is Mitsubishi's current simplified multi-zone outdoor unit. Because it accepts M-Series, P-Series, and CITY MULTI heads on the same condenser, one Pasadena install can blend wall heads, floor consoles, and ducted air handlers under a single outdoor unit. It also comes in NAMHZ Hyper-Heat versions for all-electric homes.
One zone is not cooling but the others are fine. What is wrong?
On a multi-zone system, one weak zone usually points to that branch: a sticking LEV at the branch box, a kinked or leaking line set to that head, or a thermistor fault on that indoor unit. The whole system is rarely the problem when only one room suffers. We isolate the branch and test it.
Is a multi-zone system worth it versus several single-zone units?
If you are conditioning three or more rooms, a multi-zone MXZ usually wins on cost, wall penetrations, and a single tidy outdoor unit instead of several. For one or two rooms, separate single-zone units can be cheaper and let each run independently. We price both so you can compare for your home.
What does a multi-zone Mitsubishi system cost in Pasadena?
A three- to four-zone MXZ or MXZ-SM system typically runs $9,000 to $20,000 installed at the SoCal range, depending on head count, line-set lengths, electrical work, and whether you choose Hyper-Heat NAMHZ. A larger five- to eight-zone estate job sits toward the high end. We quote in writing after a per-room Manual J load.
Can I add a zone to my existing MXZ later?
Sometimes, but only if the outdoor unit has a spare port and enough connectable capacity left for another head. Many MXZ condensers are sized close to their zones, so adding a room can mean a larger outdoor unit. We check your model's port count and capacity range before promising an add-on, so you are not surprised.
